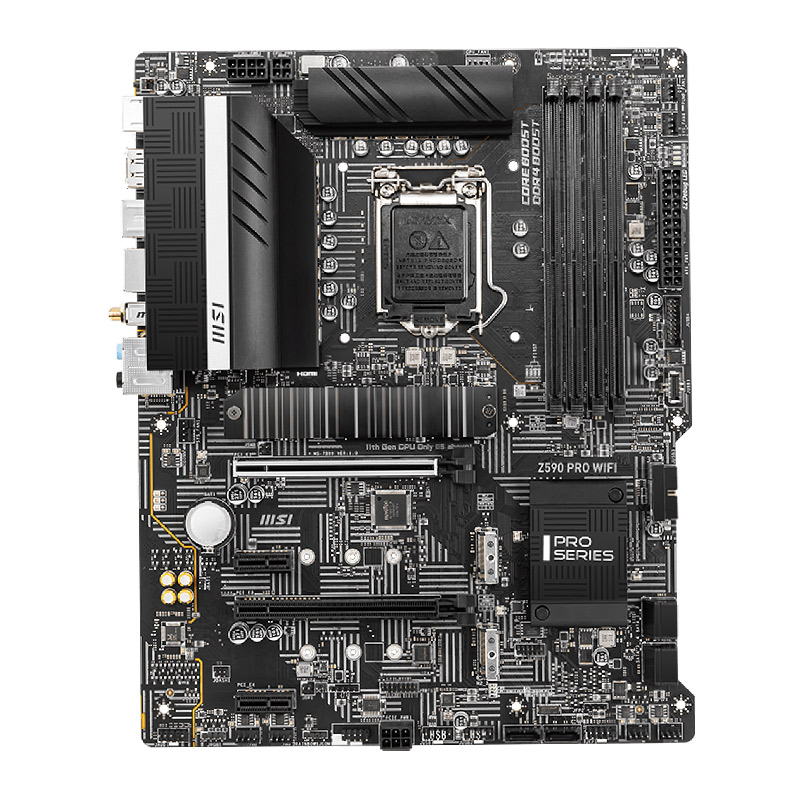

| Socket | Intel® LGA 1200 (Supports 10th & 11th Gen Intel® Core™ Processors) |
| Chipset | Intel® Z590 |
| Form Factor | ATX |
| Memory | 4 × DDR4 DIMM Slots (Up to 128GB) |
| Memory Features | Dual-Channel, Unbuffered Memory, Intel® XMP Support |
| Expansion Slots | 2 × PCIe x16 Slots |
| PCI_E1 (CPU): PCIe 4.0 Support |
| PCI_E3 (Chipset): PCIe 3.0 Support |
| 2 × PCIe 3.0 x1 Slots |
| Multi-GPU Support | 2-Way AMD® CrossFire™ |
| Onboard Graphics Ports | 1 × HDMI™ 2.0 (4K @ 60Hz, HDR) |
| 1 × DisplayPort 1.4 (4K @ 60Hz) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Storage | 3 × M.2 Slots (Key M) |
| Supports 2242 / 2260 / 2280 SSDs |
| M2_1 supports up to PCIe 4.0 ×4 (22110 supported) |
| M2_2 & M2_3 support up to PCIe 3.0 ×4 |
| Intel® Optane™ Memory Ready |
| 6 × SATA III (6Gb/s) Ports |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| RAID 0 / 1 (M.2 NVMe) |
| LAN | Intel® I225-V 2.5Gbps Ethernet |
| Wireless | Intel® Wi-Fi 6E AX210 |
| Wi-Fi Features | MU-MIMO TX/RX, 2.4GHz / 5GHz (160MHz), up to 2.4Gbps |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth® 5.2 |
| Power Connectors | 1 × 24-pin ATX |
| 1 × 8-pin ATX 12V |
| 1 × 4-pin ATX 12V |
| 1 × 6-pin PCIe Power Connector |
| USB Ports | 1 × USB 3.2 Gen2 Type-C (10Gbps) |
| 2 × USB 3.2 Gen1 Headers (supports 4 ports) |
| 2 × USB 2.0 Headers (supports 4 ports) |
| Cooling Connectors | 1 × CPU Fan |
| 1 × Water-Pump Fan |
| 6 × System Fan Connectors |
| Internal I/O Connectors | Front Panel Audio, System Panel, Chassis Intrusion |
| Clear CMOS Jumper, TPM Module Connector |
| Serial Port Connector, Tuning Controller Connector |
| TBT Connector (Supports RTD3) |
| LED Features | 1 × 4-pin RGB LED Connector |
| 2 × 3-pin ARGB (RAINBOW) LED Connectors |
| 4 × EZ Debug LEDs |
| Dimensions | 12.0 in × 9.6 in (ATX Standard) |
