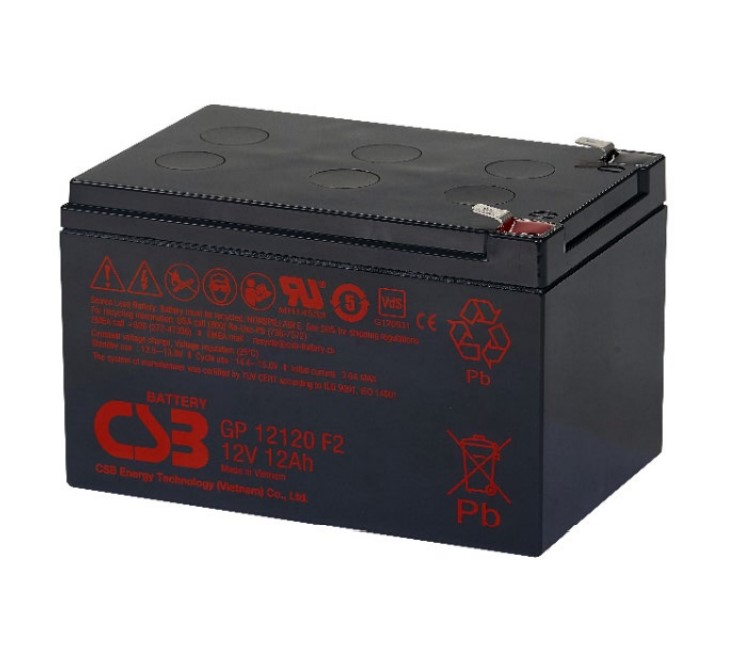

CSB Battery GP 12120 F2 12V 12Ah
Product ID: BAT44833
• Brand / Model: CSB GP 12120 F2
• Battery Type: Sealed Lead Acid (SLA)
• Voltage: 12V
• Capacity: 12 Ah
• Terminal: F2 (6.35 mm)
100% original guarantee
Customer Service
Free delivery on all orders
| Item | Specification |
|---|---|
| Battery Type | Sealed Lead-Acid (VRLA, AGM) |
| Nominal Voltage | 12 V |
| Nominal Capacity | 12 Ah @ 20 hr rate (to 1.75 V/cell @ 25 °C) |
| Weight | ≈ 3.7 kg (8.2 lb) |
| Dimensions (L × W × H) | 151 × 98 × 100 mm |
| Terminal Type | F2 (Faston Tab 6.3 mm) |
| Maximum Discharge Current | 150 A (for 5 seconds) |
| Internal Resistance | ≈ 16 mΩ |
| Float Charge Voltage | 13.5 – 13.8 V @ 25 °C |
| Cycle Charge Voltage | 14.4 – 15.0 V @ 25 °C |
| Operating Temperature (Discharge) | –15 °C to +50 °C |
| Operating Temperature (Charge) | –15 °C to +40 °C |
| Operating Temperature (Storage) | –15 °C to +40 °C |
| Recommended Max. Charging Current | 3.6 A |
| Design Life (Standby) | ≈ 5 years @ 25 °C |
| Container Material | ABS (UL 94-HB); V0 optional |
| Technology | Maintenance-free, Valve Regulated Lead-Acid (AGM) |
