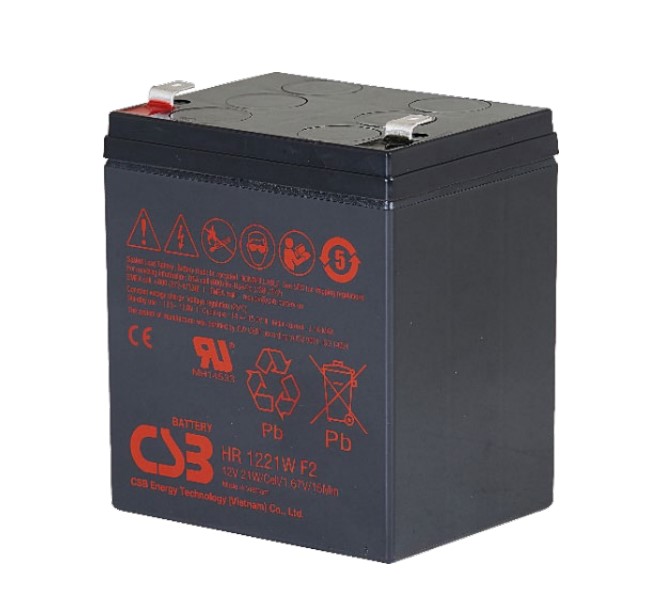

CSB Battery HR 1221W F2 12V 5Ah
Product ID: BAT44836
• Brand/Model: CSB HR 1221W F2
• Battery Type: Sealed Lead Acid (SLA)
• Voltage: 12V
• Capacity: 5 Ah
• Terminal: F2 (6.35 mm)
100% original guarantee
Customer Service
Free delivery on all orders
| Item | Specification |
|---|---|
| Battery Type | Sealed Lead-Acid (VRLA, AGM, High-Rate Discharge) |
| Nominal Voltage | 12 V |
| Nominal Capacity | 5 Ah @ 20-hour rate (to 1.75 V/cell @ 25 °C) |
| Weight | ≈ 1.8 kg |
| Dimensions (L × W × H) | 90 × 70 × 101.8 mm |
| Terminal Type | F2 (Faston 6.3 mm tab) |
| Maximum Discharge Current | 90 A (5 seconds) |
| Internal Resistance | ≈ 25 mΩ |
| Float Charge Voltage | 13.5 – 13.8 V @ 25 °C |
| Cycle Charge Voltage | 14.4 – 15.0 V @ 25 °C |
| Recommended Max Charging Current | 1.5 A |
| Operating Temperature (Discharge) | –15 °C to +50 °C |
| Operating Temperature (Charge) | –15 °C to +40 °C |
| Operating Temperature (Storage) | –15 °C to +40 °C |
| Container Material | ABS (UL 94-HB); UL 94-V0 optional |
| Design Life (Standby Use) | ≈ 5 years @ 25 °C |
| Technology | Maintenance-free, Valve Regulated Lead-Acid (AGM) |
