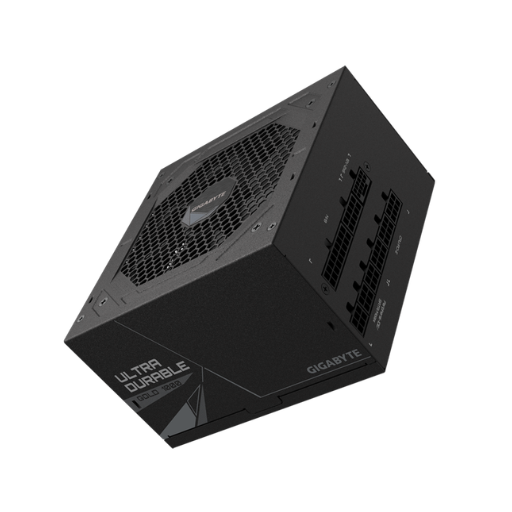

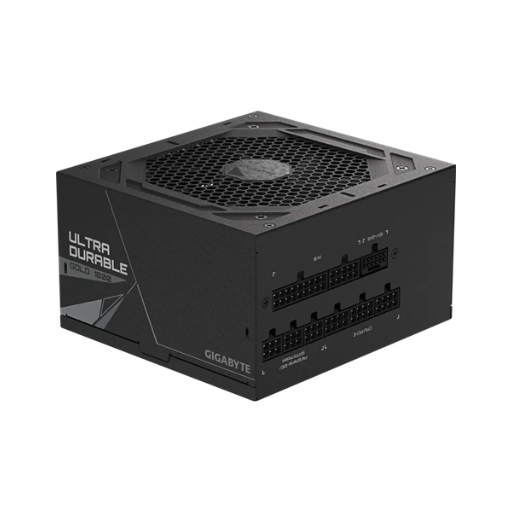

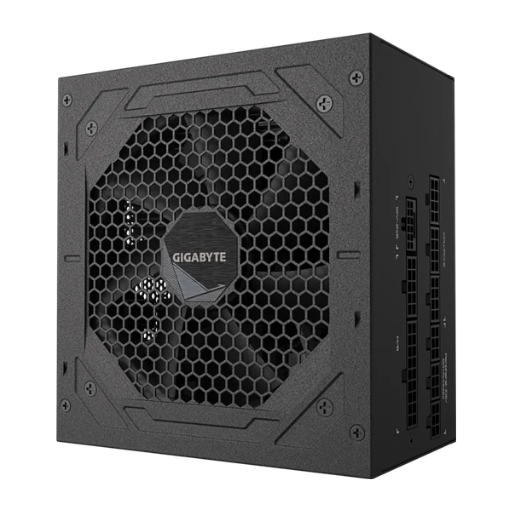

Gigabyte GP-UD1000GM PG5 V2, PCIe5.1, ATX3.1, 1000W, 80 Plus, Gold Certified, Fully Modular Power Supply (UD1000GM PG5 V2)
Product ID: PWS45818
● 1000W 80+ Gold — efficient, high-wattage performance
● Native PCIe 5.1 12+4-Pin — ready for latest GPUs, no adapter needed
● Fully Modular Design — cleaner builds, easier cable management

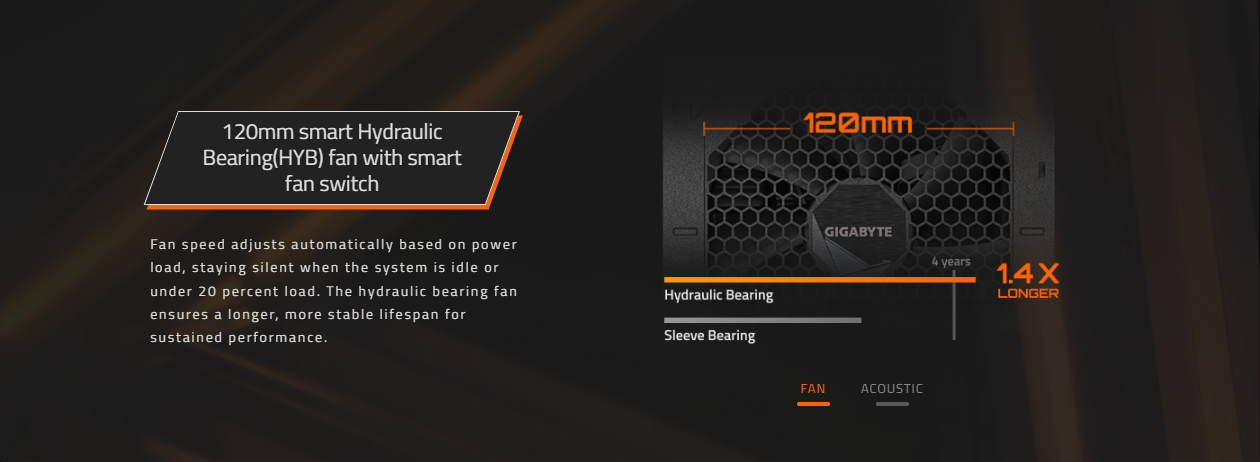

● 120mm Hydraulic Bearing Fan — quiet, durable cooling

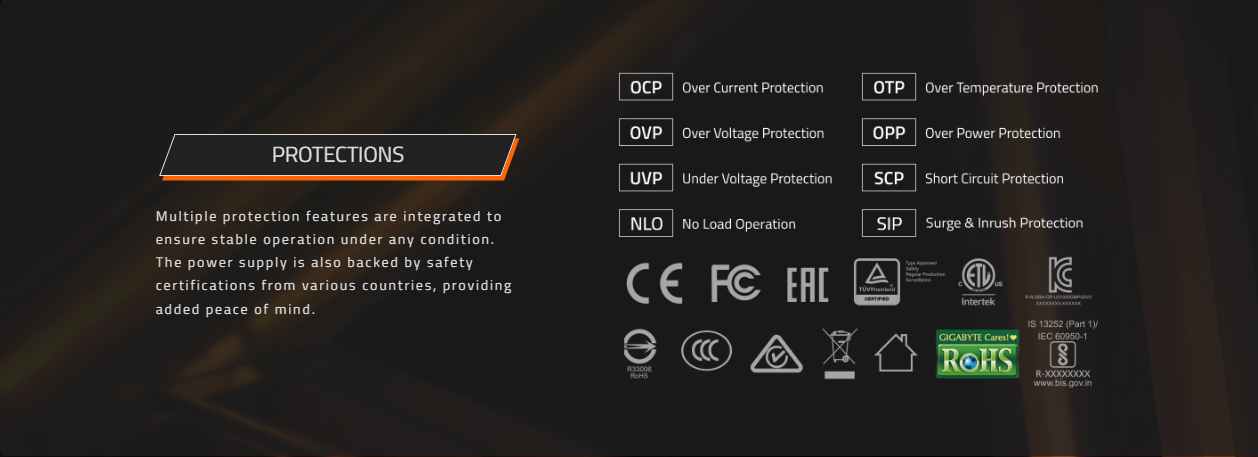

● Full Protection Suite — OVP/OPP/SCP/UVP/OCP/OTP safeguards
100% original guarantee
Customer Service
Free delivery on all orders
| Specification | Details |
|---|---|
| Model | GP-UD1000GM PG5 V2 |
| Form Factor | Intel ATX 12V v3.1 |
| Wattage | 1000W |
| Efficiency Rating | 80 Plus Gold (90% typical load) |
| PCIe Support | PCIe 5.1, native 12V-2x6 connector |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100–240 Vac (full range) |
| Input Current | 15–6.5A |
| Input Frequency | 50–60 Hz |
| Modularity | Fully Modular |

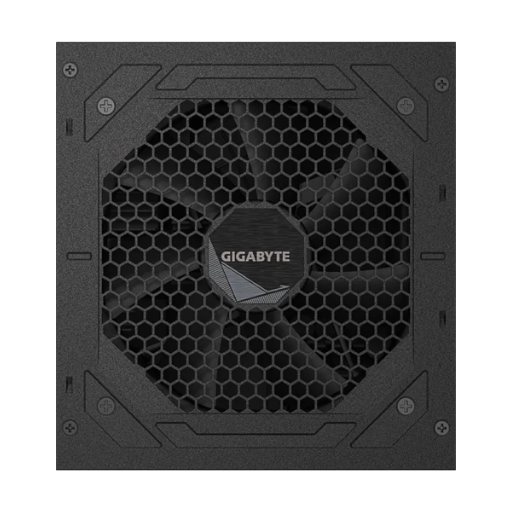

| Fan | 120mm Hydraulic Bearing (HYB) Fan |
| MTBF | >100,000 hours |
| Protections | OVP, OPP, SCP, UVP, OCP, OTP |
| Hold Up Time | >16ms |
| Cable Type | Embossed, all black |

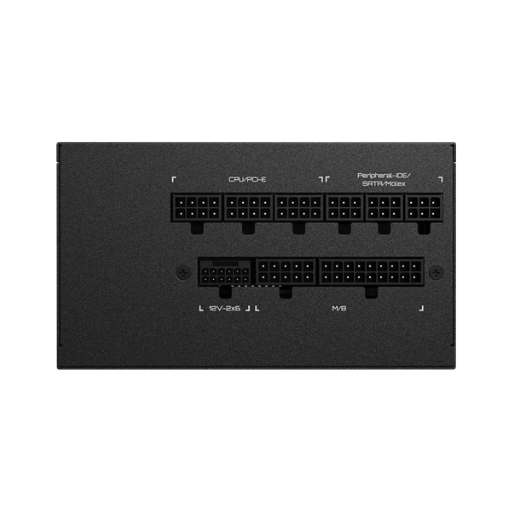

| Connectors | 1x 24-pin ATX/MB, 2x 4+4-pin EPS/CPU, 4x 6+2-pin PCIe, 1x 12+4-pin PCIe, 8x SATA, 3x 4-pin Peripheral + 1x 4-pin Floppy |
| Dimensions | 150 x 140 x 86 mm |
