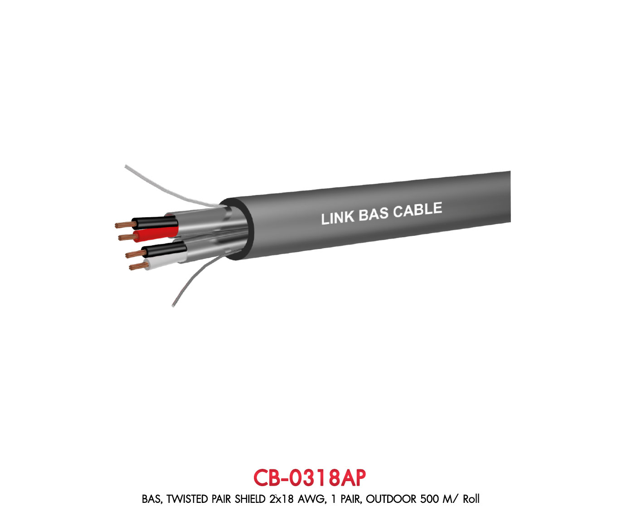

LINK BAS, Twisted Pair Foil Shield 2x18 AWG, 1 P, Outdoor Control Cable (CB-0318AP)

Price:

MVR 12.00

Networking , Network Cables ,

  2. Shop
  3. Network Cables
  4. Link BAS Twisted Pair Foil Shield 1P CB-0318AP 500M Outdoor Control Cable
LINK BAS, Twisted Pair Foil Shield 2x18 AWG, 2 P Control Cable (CB-0418A)
LINK BAS, Twisted Pair Foil Shield 2x18 AWG, 2 P Control Cable (CB-0418A)
MVR 22.00
MVR 22.00
LINK PV Solar Cable, 4 mm2, 100m, Black (CB-1040AB-1)
LINK PV Solar Cable, 4 mm2, 100m, Black (CB-1040AB-1)
MVR 19.00
MVR 19.00

Link BAS Twisted Pair Foil Shield 1P CB-0318AP 500M Outdoor Control Cable

Product ID: CBL42585
https://shop.personalcomputers.mv/web/image/product.template/66763/image_1920?unique=3e93418

• Twisted Pair BAS
• 18 AWG
• HDPE Jacket
• UL Certified
• Stranded Bare Copper Conductor

Share this product:

MVR 12.00 12.0 MVR MVR 12.00 ​  *GST Included ​

MVR 12.00 ​  *GST Included ​

Not Available For Sale

    This combination does not exist.

    Contact Us
    Share :
    Terms and Conditions:
    100% original guarantee
    Customer Service
    Free delivery on all orders


    LINK BAS, Twisted pairs cable describes one pair (2 Cores) and two pairs (4 Cores). The maximum operating voltage is 300VAC/VDC, the flame retardant is in accordance with UL444.


    Conductor Material: Stranded bare copper
    Conductor Diameter: 18 AWG
    Insulation Material: High Density Polyethylene
    Insulation Thickness: 0.40mm
    Insulation Diameter: 2.00 ± 0.05
    Drain Wire Material: Stranded tinned copper
    Drain Wire Diameter: 7x0.20 mm
    Shielded Material: Aluminum polyester tape
    Ripcord: 3x150D
    Jacket Material: High Density Polyethylene
    Jacket Thickness: 0.80 ± 0.05
    Jacket Diameter: 5.8 ± 0.3
    Before Tensile Strength: ≥ 13.8 Mpa
    Aging Elongation: ≥ 100%
    After Tensile Strength: ≥ 85% of unaged
    Aging Elongation: ≥ 50% of unaged
    Cold Bend (-20°C x 4 hours): No Crack
    Min. Bend Radius: 8 x OD
    No. Of Pairs: 1
    DCR Conductor: ≤ 22.0 Ω/km
    DCR Shielded: 67.0 Ω/km
    Capacitance Cond. to Cond.: 125 pF/m
    Capacitance Cond. to Shield: 225 pF/m
    Voltage: 300 VAC/VDC
    Dimensions:
    -Cable length: 500M
