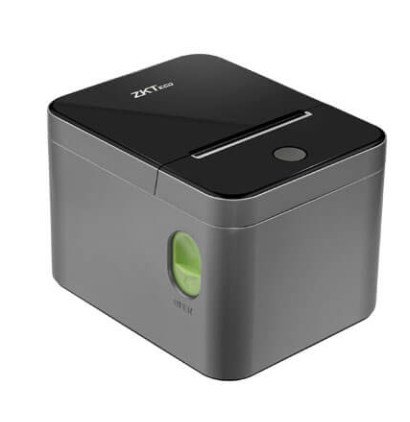

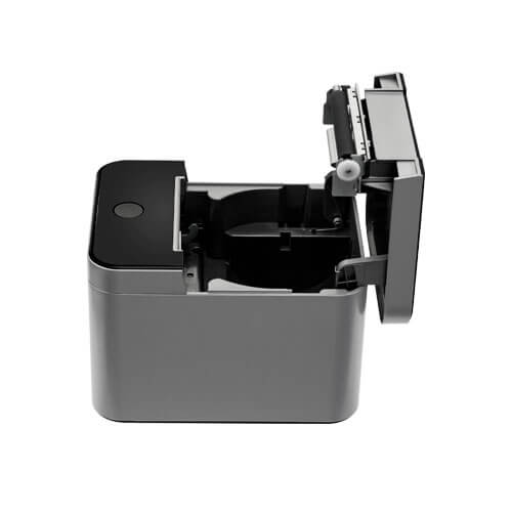

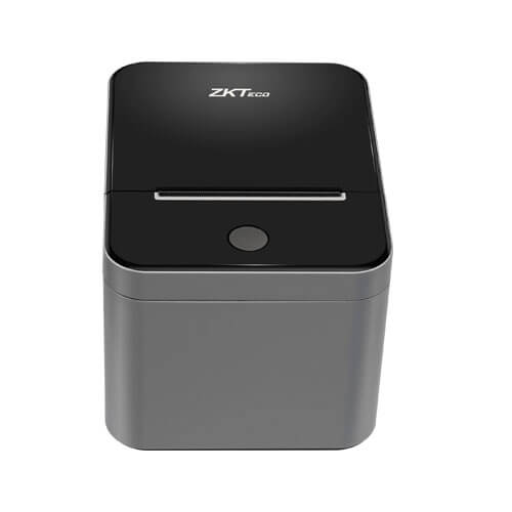

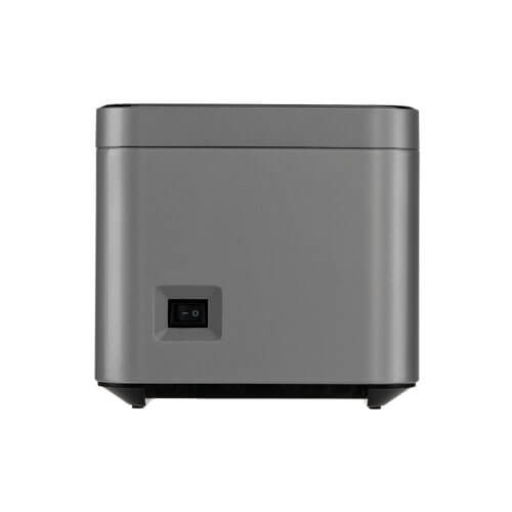

ZKTeco ZKP8012 Thermal Receipt Printer
Product ID: PRT44723
• Printing method: Direct thermal
• Paper width: 79.5 ± 0.5 mm
• Print width: 72 mm
• Max paper roll diameter: 80 mm
• Print resolution: 512 dots/line
• Print speed: 230 mm/s
• Interface: USB + LAN (USB + RS232 optional)
| Attribute | Details |
|---|---|
| Printing Method | Direct Thermal |
| Paper Width | 79.5 ± 0.5 mm |
| Print Width | 72 mm |
| Max Paper Roll Diameter | 80 mm |
| Print Resolution | 512 dots/line (adjustable by command) |
| Printing Speed | 230 mm/s |
| Interface | USB + LAN (USB + RS232 optional) |
| Line Spacing | 3.75 mm (adjustable by command) |
| Column Number | Font A: 42 or 48 columns |
| Character Size | Font A: 1.5 × 3.0 mm (12 × 24 dots) |
| Font B: 1.1 × 2.1 mm (9 × 17 dots) | |
| Auto Cutter | Partial |
| Supported Character Sets | PC437 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portugal), PC863 (Canadian), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT1511251 |
| Supported Barcode Types | UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODABAR, ITF, CODE39, CODE93, CODE128, QR CODE, PDF417 |
| Power Adapter Input | AC 100-240V / 50-60 Hz |
| Power Adapter Output | DC 24V / 2.5A |
| Cash Drawer Output | DC 24V / 1A |
| Cutter Life | Up to 1 million cuts |
| Printer Head Life | Up to 100 km |
| Dimensions (DxWxH) | 165 x 130 x 121 mm |
| Colors | Black and Gray (White optional) |
